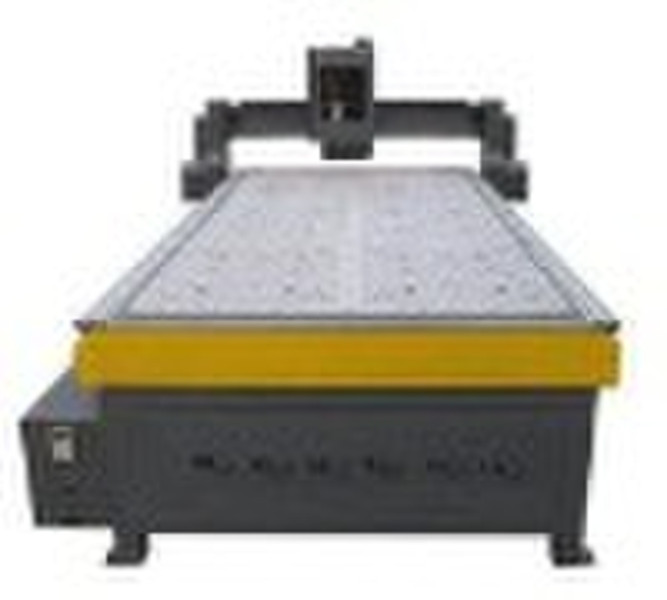

CNC Router Engraving Machine

The detailedfeature and specificationof thisCNC Router Engraving Machine set out as follows: Features: 1. X, Y, Z working area 1, 300 x 2, 500 x 200mm 2. Table size 1, 320 x 3, 040mm 3. X, Y, Z traveling positioning accuracy ± 0.05/300mm 4. X, Y, Z repositioning positioning accuracy ± 0.05mm 5. Surface: Vacuum system bakelite 6. Frame: Welded structure 7. X, Y structure rack and pinion drive, hiwin rail linear bearings 8. Z structure: Ball screw, hiwin rail linear bearings9. Power consumption: 2.0kW 10. Max. Rapid travel rate: 0-32, 000mm/min 11. Max. Working speed 0-20, 000mm/min 12. Spindle power motor 2.0/3.0kW HSD spindle 13. Spindle speed 0-18, 000rpm 14. Drive motor: Stepper motor 15. Working voltage AC 220V/50/60Hz, (option: 380V) 16. Command language: G code17. Operating system: DSP system (option: Mach3 PC software) 18. Interface: USB 19. Flash memory: 128MB (USB disk) 20. Collet: ER25 21. X, Y working resolution: <0.02mm 22. Software compatibility: Type 3 software, Ucancam software, Artcam software 23. Running circumstance temperature: 0° C-45° C 24. Relative humidity: 30%-75%Packing: Wooden case Size: S Eparated: 3, 200 x 1, 960 x 1, 340mm Integrated: 3200 x 1, 960 x 1, 870mm Net weight: 960kg Gross weight: 1, 200kg
